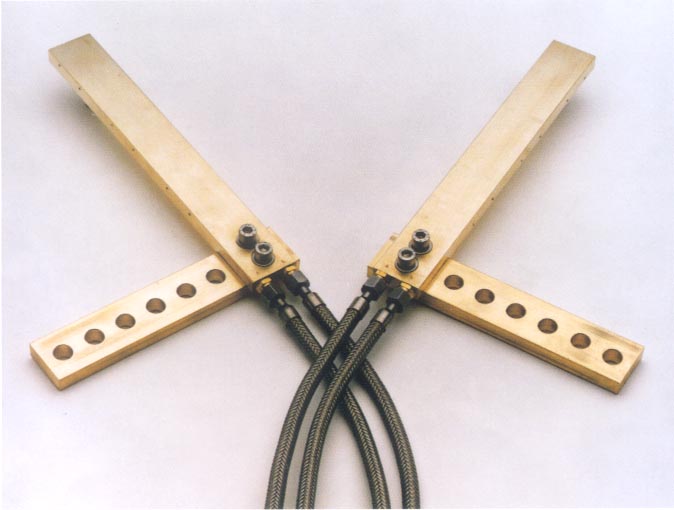

Graphoidal Shear Spray Bars:

• Finest atomisation of the emulsion
• Ultimate cooling by evaporation effect
• Self cleaning effect by venturi principle
• No inner wear parts
• Extremely low water consumption
• Spray from above and below possible

Graphoidal Regulator Unit:

• Mixing of oil and water close to the shear spray nozzles
• Optimised mixing in a special graphoidal mixing block
• Reduction of bacterial contamination
• Extremely short stay of the emulsion in the pipework
• Reduced blocking of pipes and nozzles
• Accurate adjustment of the consumption
• Mounting close to shear on gob distributor platform
• Simple operation

Graphoidal Shear Spray Dosing Unit:

• Automatic control of the mixing ratio, also with
  floating water flow
• Highly accurate Digital measurement of the waterflow
• Mixing ratios from 1:100 to 1:2000 with an
  accuracy of 0,0015 ml/pump stroke
• Extensive alarm functions
• Several back up functions for continous production
• Without premixed emulsion
• Auto fill possible
